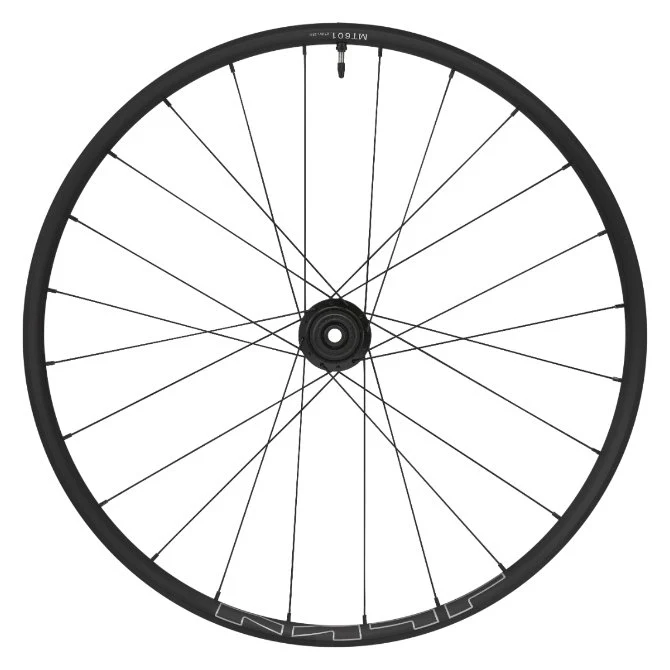

Shimano WH-MT601-TL Rear Wheel

Shimano WH-MT601-TL Rear Wheel

Shimano WH-MT601-TL Rear Wheel - 27.5" | Clincher/Tubeless | Centerlock - 12x142mm - Micro Spline

The Shimano WH-MT601 wheels bring robust performance to any trail. The aluminum Tubeless rims feature double butted J-bend spokes that are laced to hubs with Centerlock brake disc mounts and deliver fast acceleration for more fun on the trail. A Micro Spline freewheel makes it possible to install Shimano 12-speed cassettes.

The MTB rear wheel is perfectly suited for combination with components of the Shimano Deore M6100 series.


Micro Spline

The aluminium freewheel with 22 evenly spaced teeth keeps the cassette firmly under control for immediate response and also allows the use of a 10 teeth sprocket. In addition, the smaller and compared to the usual Hyperglide freewheel bodies more extensive gearing prevents rotor damage.

Technical details of the Shimano WH-MT601 rear wheel

Material:

  • rim, hub: aluminium (painted)
  • axle, freewheel body: steel
  • spokes: stainless
  • nipples: aluminium (anodized)

Rim:

  • 27.5 inches / 650B
  • width: 28.8 mm (external) / 25 mm (internal)
  • profile height: 21 mm
  • Tubeless compatible

Hub:

  • O.L.D.: 12 x 142 mm
  • Centerlock brake disc mount
  • Micro Spline freewheel body for 12-speed cassettes
  • cone bearings with labyrinth and contact seals
Spokes: 24, J-Bend, double butted


Weight: approx. 1195 grams (manufacturer's specs)

$154.18
Shimano WH-MT601-TL Rear Wheel—
$154.18

Product Information

Shipping & Returns

Description

Shimano WH-MT601-TL Rear Wheel - 27.5" | Clincher/Tubeless | Centerlock - 12x142mm - Micro Spline

The Shimano WH-MT601 wheels bring robust performance to any trail. The aluminum Tubeless rims feature double butted J-bend spokes that are laced to hubs with Centerlock brake disc mounts and deliver fast acceleration for more fun on the trail. A Micro Spline freewheel makes it possible to install Shimano 12-speed cassettes.

The MTB rear wheel is perfectly suited for combination with components of the Shimano Deore M6100 series.


Micro Spline

The aluminium freewheel with 22 evenly spaced teeth keeps the cassette firmly under control for immediate response and also allows the use of a 10 teeth sprocket. In addition, the smaller and compared to the usual Hyperglide freewheel bodies more extensive gearing prevents rotor damage.

Technical details of the Shimano WH-MT601 rear wheel

Material:

  • rim, hub: aluminium (painted)
  • axle, freewheel body: steel
  • spokes: stainless
  • nipples: aluminium (anodized)

Rim:

  • 27.5 inches / 650B
  • width: 28.8 mm (external) / 25 mm (internal)
  • profile height: 21 mm
  • Tubeless compatible

Hub:

  • O.L.D.: 12 x 142 mm
  • Centerlock brake disc mount
  • Micro Spline freewheel body for 12-speed cassettes
  • cone bearings with labyrinth and contact seals
Spokes: 24, J-Bend, double butted


Weight: approx. 1195 grams (manufacturer's specs)
